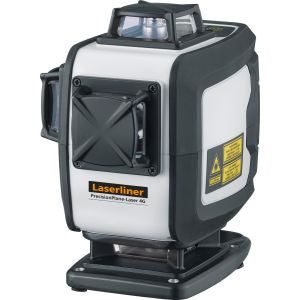

Description: This cross-line laser produces four clearly visible green laser circles for precise alignment of horizontal, vertical surfaces and slopes. The device is particularly suitable for working close to the floor such as determining floor heights and aligning skirting boards. The projected laser crosses provide a simple plumb function. The easy-to-use device has a versatile range of options for damage-free fixing, Digital Connection interface for remote control, and an easy-to-read battery charge status. Long operating time due to the inclusion of a second battery. When working over long distances, the laser lines can be identified using the integrated hand-held receiver mode and an optional hand-held receiver.
- Exact horizontal and vertical alignment of objects
- Optimum solution for applications very close to the floor (determining floor heights, aligning skirting boards)
- Easy alignment of slopes
- Good visibility through green laser technology
- Digital Connection interface for remote control with smartphones using the Commander app
- Versatile damage-free mounting options
- Second battery for long operating time
- Straight forward plumb function using laser crosses
- Integrated handheld receiver mode for outdoor applications and long ranges
- Easy-to-read battery charge status
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Replaceable battery system | ✅ |
| Anti-shake mode | ✅ |
| Hand receiver mode | ✅ |
| Tilt warning function | ✅ |
| Precision sensor levelling | ✅ |
| Self-Levelling Range | ± 3° |
| Accuracy | ± 0.15 mm / m |
| Levelling | automatic horizontal / vertical levelling with electronic levels and motors |
| Visibility (Typical)* | 60 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Power Supply | Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh Power adapter 12V / DC / 2A |
| Operating Time | with 3 laser levels: approx. 5 hours with 2 laser levels: approx. 6 hours with 1 laser level: approx. 9 hours |
| Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
| Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
| Dimensions (W x H x D) | 141 mm x 142 mm x 96 mm |
| Weight | 870 g (inkl. Akkupack) |
| * at max. 300 lux |
